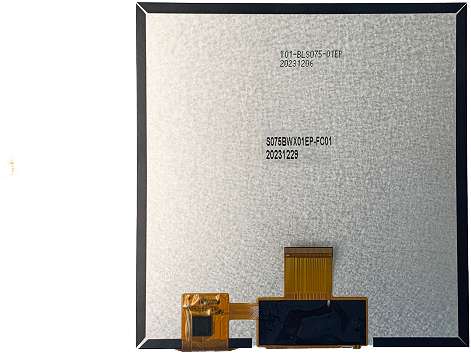

7.5inch 800x800 IPS highlight square LCD display with PCAP & Optical bonding

Product classification:DISPLAY / TOUCH / BONDING SOLUTIONS

Price:$OEM or ODM

E-mail: stephen@infinites.com.cn

Model:

Consult immediately
Product details

Product Features

The display screen can be classified into two groups based on the industry: industrial display and consumer display.

Industrial displays are a very important device for marketing in any given environment. Its quality and reliability are hinged on the design employed. Despite the fact that both are used for display, the criteria for industrial displays are higher than those for consumer displays.

Hence it is important to partner with a high-tech industrial display solution expert who will supply you with the product that suits your application scenes.


01.pngsunlight readable
02.pngHigh thermal stability
03.pngHigh Brightness
04.pngGloves touch
05.pngWaterproof  touch
06.pngAnti-Vibration
07.pngAnti-Shock
08.pngHigh thermal stability
09.pnglonlevity
10.pngAnti-Shattering

Specifications

General Features

Size7.53'' TFT Display Resolution800 x 800
LCD InterfaceMIPICTP interfaceI2C
LED lifetime50K hrsViewing DirectionIPS
Pixel pitch
0.1692 (H) x 0.1692(V)
Luminance

850nits(TYP)

LCM (W x H x D) (mm)
142.52 x 148.20 x 6.96
Active Area(mm)
135.36 135.36
Operation Temperature -20 ~ +70Storage Temperature -30 ~ +80

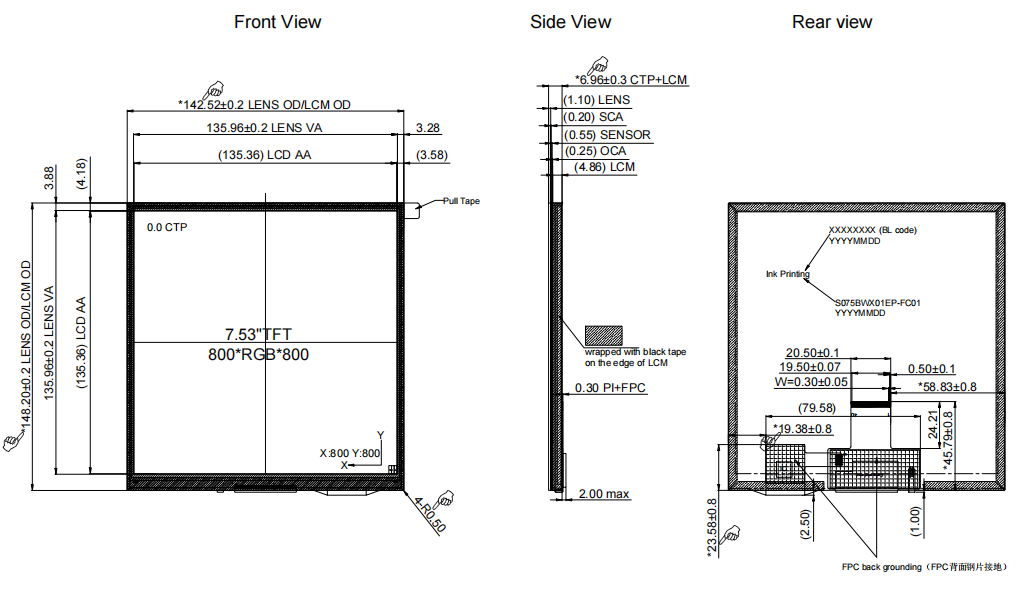

Product Details& Drawing

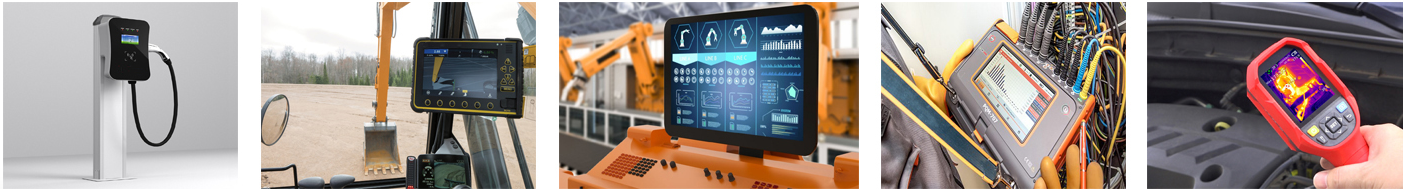

Actual Product Applications

Infinites Tech offers industrial TFT solutions with high quality (reliability) and cost-effectiveness that are mainly used in multi applications. For instance, EV charging station, construction equipment, HMI display and test & measurement devices, etc.
