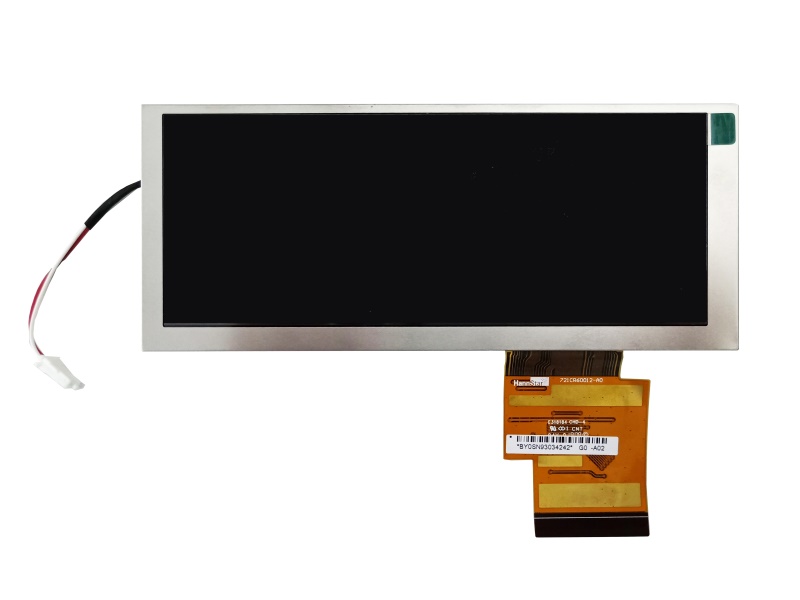

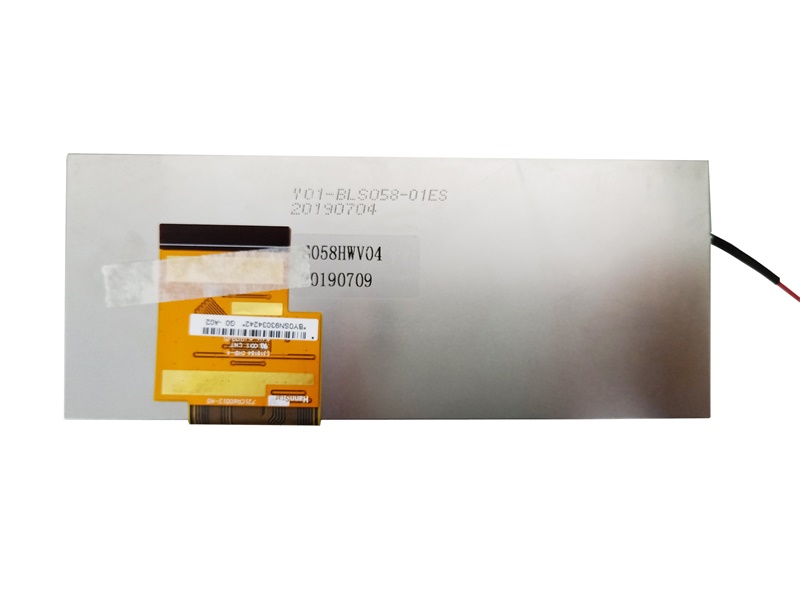

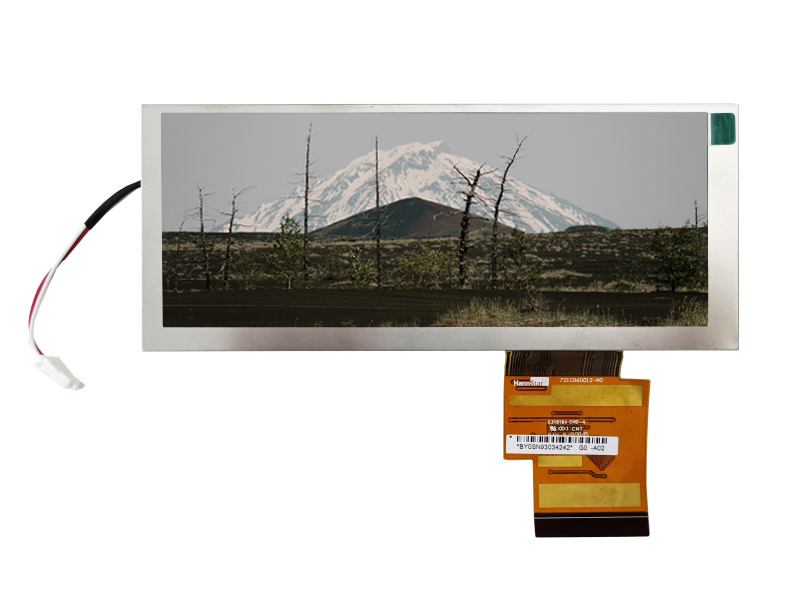

5.8 inch 800 x 320 Bar type color TFT LCD with 500nits brightness

Product classification:DISPLAY / TOUCH / BONDING SOLUTIONS

Price:$OEM or ODM

E-mail: stephen@infinites.com.cn

Model:

Consult immediately
Product details

Product Features

With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrialautomotivemedicalhome appliance and maritime, etc.

01.pngsunlight readable
02.pngHigh thermal stability
03.pngHigh Brightness
04.pngGloves touch
05.pngWaterproof  touch
06.pngAnti-Vibration
07.pngAnti-Shock
08.pngHigh thermal stability
09.pnglonlevity
10.pngAnti-Shattering

Specifications

General Features

Size5.8 inch TFT Display Resolution800(RGB)x 320 Dots
LCD Interface RGB-24bitFPC PINs60 pins
Display ModeNormally WhiteViewing Direction12 O’clock
CTP interfaceI2CTouch Ponitsupport Mutil-Touch
Pixel pitch0.1719 x 0.1607Luminance 500 nits
LCM (W x H x D) (mm)154.40 x 63.34 x 3.5Active Area(mm)137.52 x 51.44
Operation Temperature -20 ~ +70Storage Temperature -30 ~ +80

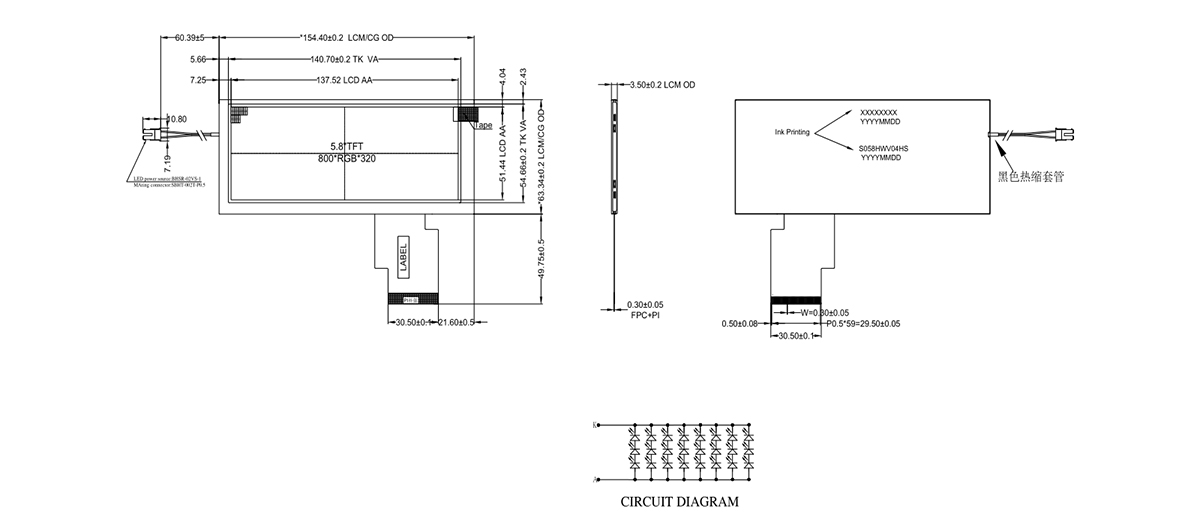

Product Details& Drawing



Actual Product Applications

With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrialautomotivemedicalhome appliance and maritime, etc.
