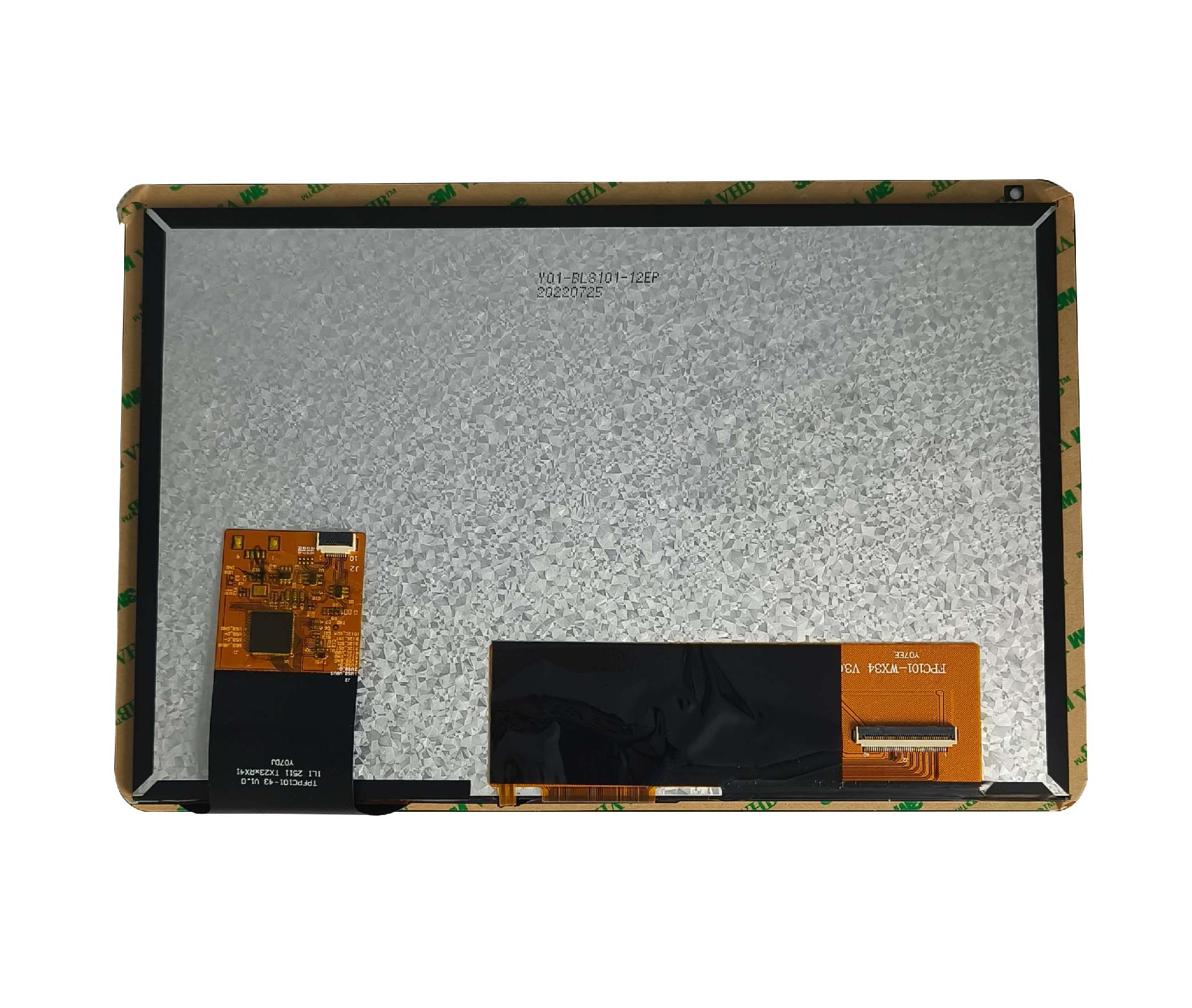

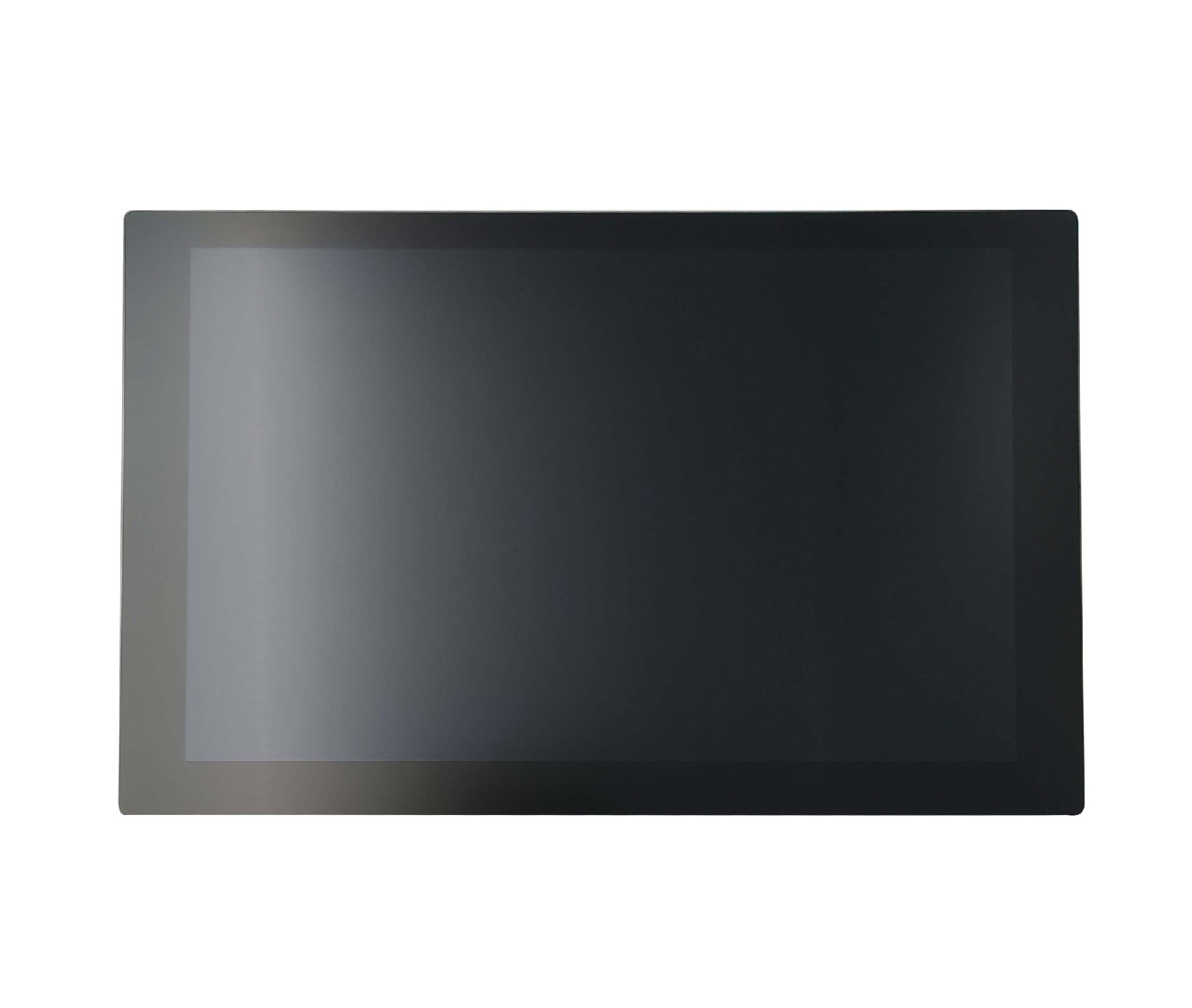

10.1" Hightlight TFT LCD Display With PCAP&OCA Bonding 1280*800

Product classification:DISPLAY / TOUCH / BONDING SOLUTIONS

Price:$OEM or ODM

E-mail: stephen@infinites.com.cn

Model:

Consult immediately
Product details

Product Features

The demand for vehicle LCD displays increases every year. Monitors are very popular in applications such as instrument cluster, navigation, multi-functional monitors, and rear set entertainment.

01.pngsunlight readable
02.pngHigh thermal stability
03.pngHigh Brightness
04.pngGloves touch
05.pngWaterproof  touch
06.pngAnti-Vibration
07.pngAnti-Shock
08.pngHigh thermal stability
09.pnglonlevity
10.pngAnti-Shattering

Specifications

General Features

Size10.1 inch TFT Display Resolution1280(RGB)x800 Dots
LCD InterfaceLVDSFPC PINs40(TFT)+10(CTP)
Display ModeNormally BlackViewing Direction    IPS
CTP interfaceI2CTouch Ponit10points
Pixel pitch0.1695 * 0.1695Luminance 800 nits
LCM (W x H x D) (mm)242*160*6.33Active Area(mm)216.96*135.6
Operation Temperature -20 ~ +70Storage Temperature -30 ~ +80

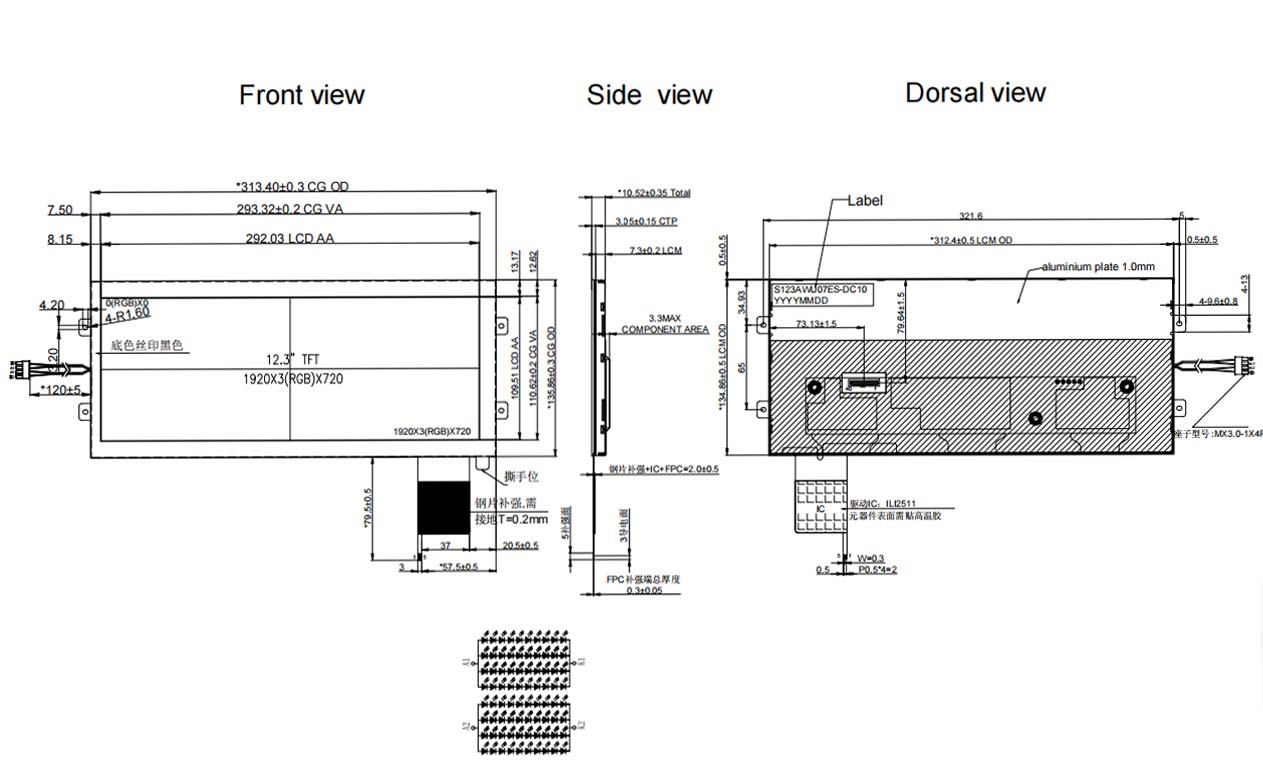

Product Details& Drawing

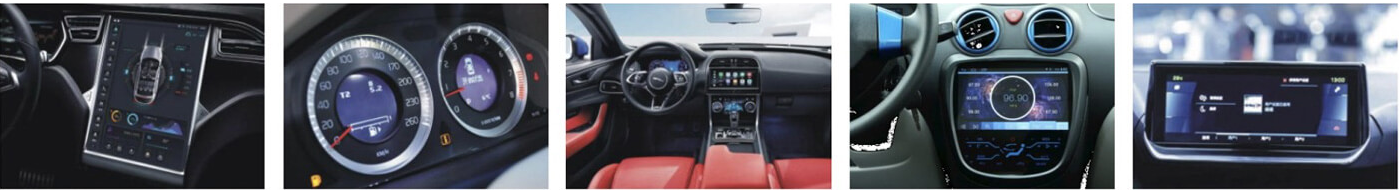

Actual Product Applications

The demand for vehicle LCD displays increases every year. Monitors are very popular in applications such as instrument cluster, navigation, multi-functional monitors, and rear set entertainment.
