7.0inch 800x480 TFT LCD display with Capacitive touch panel 800(RGB)x480 Dots 800(RGB)x480 Dots 900

Product classification：DISPLAY / TOUCH / BONDING SOLUTIONS

Price：$OEM

E-mail: stephen@infinites.com.cn

Model:

K070SWV35EG-DC80

Consult immediately

Product details

Product Features

The demand for vehicle LCD displays increases every year. Monitors are very popular in applications such as instrument cluster, navigation, multi-functional monitors, and rear set entertainment.

sunlight readable

High thermal stability

High Brightness

Gloves touch

Waterproof touch

Anti-Vibration

Anti-Shock

High thermal stability

lonlevity

Anti-Shattering

Specifications

General Features

Size	7.0 inch TFT Display	Resolution	800(RGB)x480 Dots
LCD Interface	LVDS (8-bit input,2bit Dithering)	FPC PINs	40pins
Display Mode	Normally White	Viewing Direction	12 O’clock
CTP interface	I2C	Touch Ponit	support Mutil-Touch
Pixel pitch	0.1926*0.1790	Luminance	900 nits
LCM (W x H x D) (mm)	164.9100.07.82	Active Area(mm)	154.08 x 85.92
Operation Temperature	-30℃ ~ +85℃	Storage Temperature	-30℃ ~ +85℃

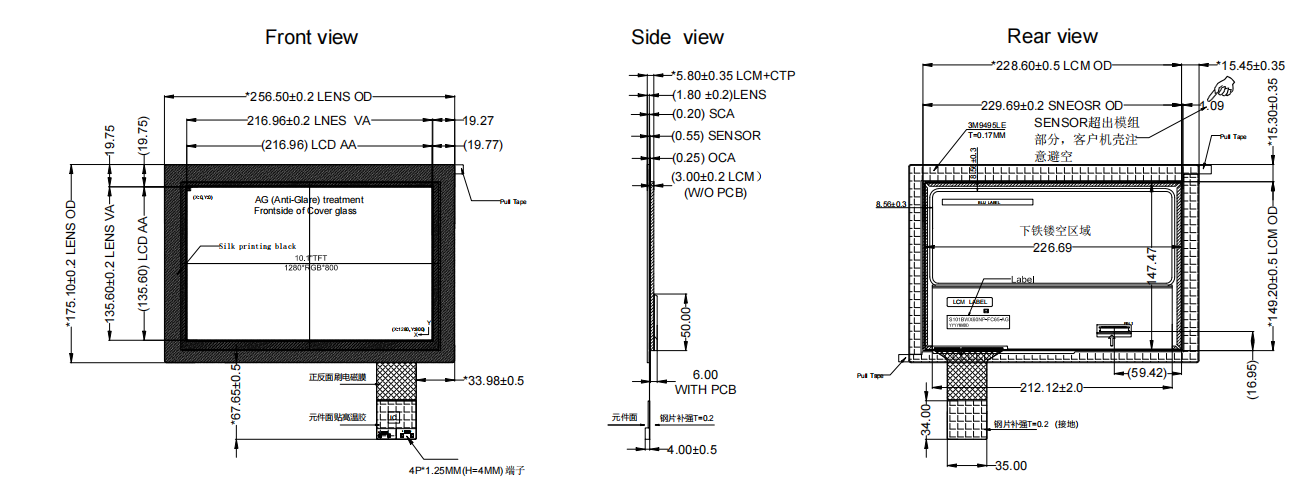

Product Details& Drawing

Actual Product Applications
